Residential Design Guidelines
In addition actual case studies of existing structures were performed to demonstrate how the new guidelines would affect future development. The studies were performed via photo modifications.

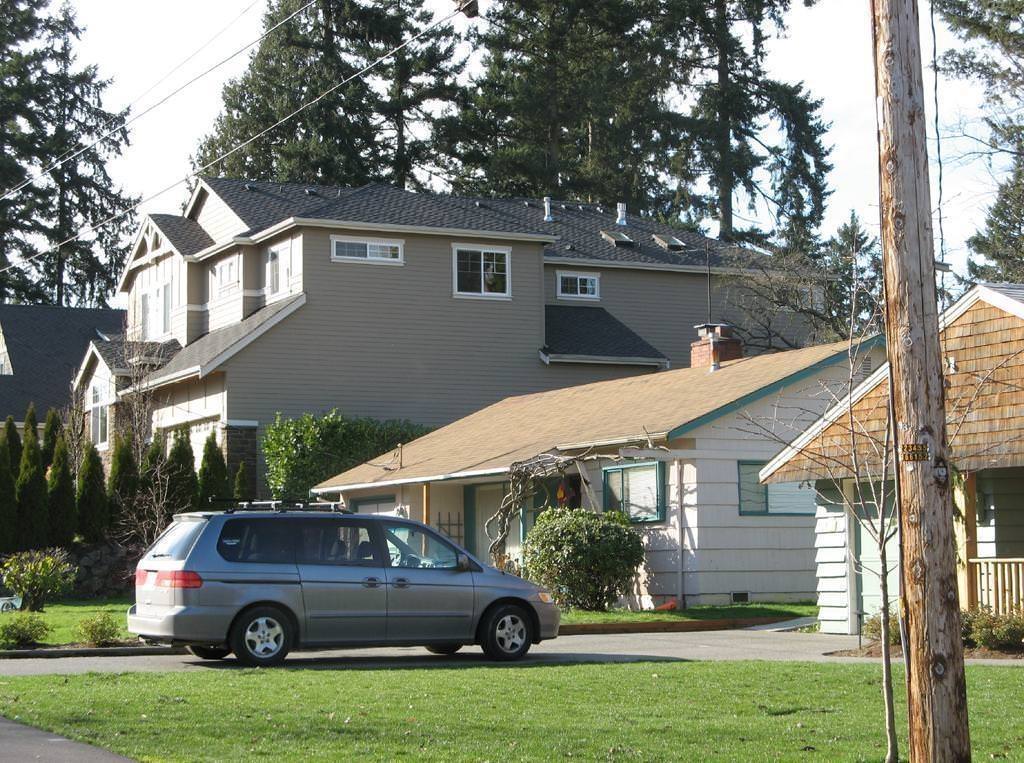

BEFORE: Residential Setback Study

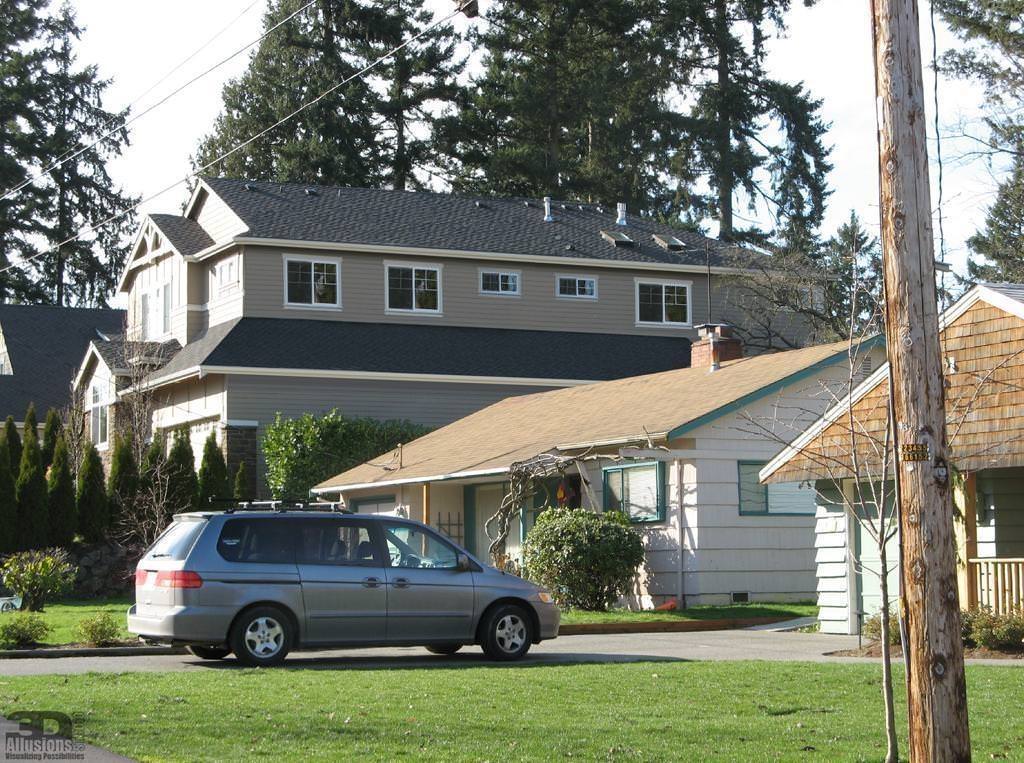

AFTER: Residential Setback Study

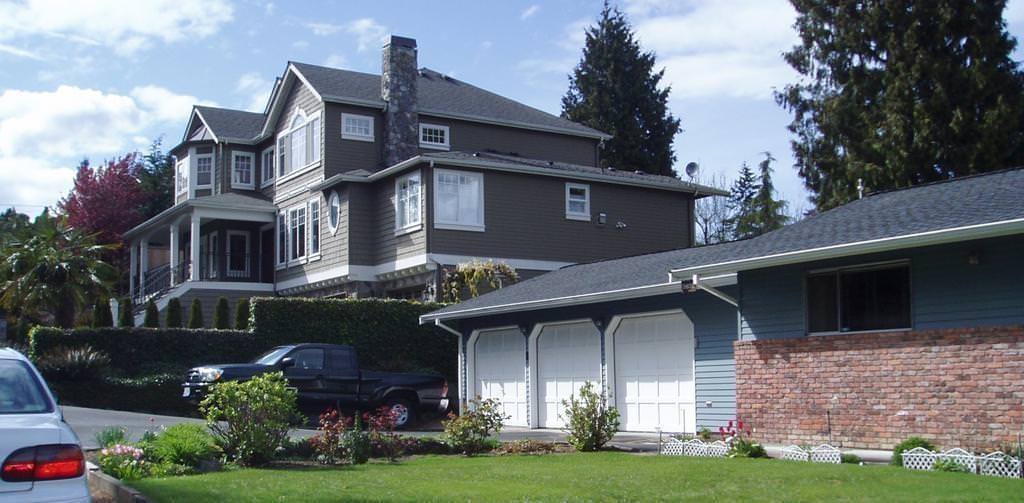

BEFORE: Daylight Plane Study

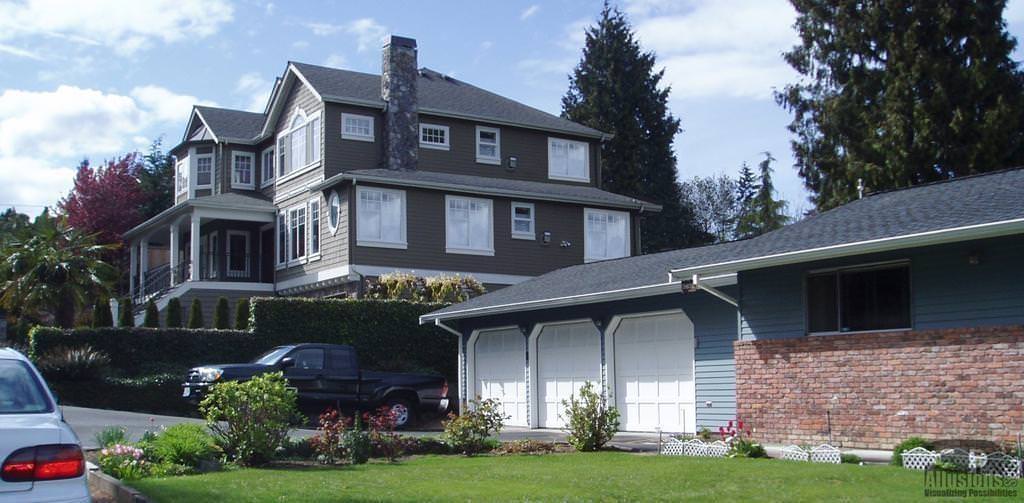

AFTER: Daylight Plane Study
The final product was a package of illustrations, colored imagery and manipulated photography of real world scenarios to demonstrate the intent and impact of the new developmental guidelines.
